Styling with CSS

In Fresnel, the code describes what is on a form, and CSS describes how it looks. You do not need to be a CSS expert to use Fresnel. This page explains the basics.

A CSS rule

A stylesheet is a list of rules. A rule has a selector and a list of declarations between curly braces:

label {
  color: blue;
  font-weight: bold;
}

The selector (label) says to which elements the rule applies. The declarations say what the value of a property is. This rule says: show the text of all labels in blue, bold letters.

Selectors

There are 3 basic selectors, and each one matches something you know from Pascal:

CSSClasses is a list of strings: an element can have as many classes as you want. Set it in the Object Inspector, or in code with CSSClasses.Add, AddCSSClass and RemoveCSSClass.

Some Fresnel classes and their CSS type names:

Selectors can be combined:

• label.value: labels with the class value;
• .toolbar button (with a space): all buttons somewhere inside an element with class toolbar;
• .row input, .row combobox (with a comma): both.

Pseudo-classes describe the state of an element: button:hover (the mouse is over the button), input:focus (the edit has the keyboard focus), button:disabled (Enabled is False), input:invalid (a validator rejected the input). Fresnel keeps these states up to date for you.

The cascade: which rule wins?

When 2 rules set the same property of the same element, the most specific rule wins: an ID selector beats a class selector, and a class selector beats a type selector. When 2 rules are equally specific, the last one wins.

So you can write a general rule for all buttons, and then make exceptions with a class.

Layout with flexbox

Every element is a rectangular box. From the inside out: the content, the padding (space around the content), the border, and the margin (space between this box and its neighbours).

Some elements, like div and body, are placed below each other. Others, like label, span and button, are placed next to each other, like words in a sentence.

To control this, use flexbox: display: flex turns an element into a flex container, and its children are placed in a row or in a column.

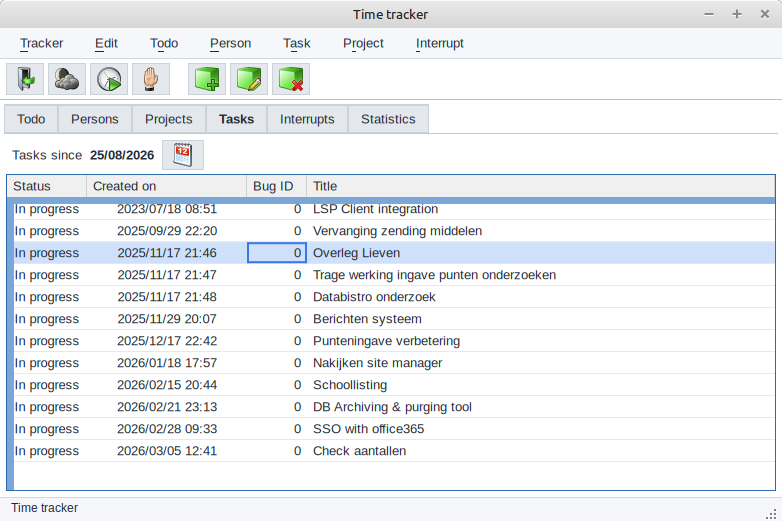

With these few properties you can do almost everything you used to do with Align and Anchors in the LCL. This is the main window of the time tracker, a real Fresnel application:

body     { display: flex; flex-direction: column; height: 100vh; }
.toolbar { display: flex; flex-direction: row; align-items: center; gap: 4px; flex: 0 0 auto; }
pagecontrol { flex: 1 1 auto; min-height: 0; }
statusbar   { flex: 0 0 auto; }

The body is a column that fills the window (100vh means 100% of the window height). The toolbar and the status bar keep their height, and the page control takes all the remaining space. In the LCL, you would set Align to alTop, alBottom and alClient.

Fresnel also supports CSS grid and absolute positioning, but for most forms flexbox is all you need. Try the flexbox and grid demos on Try it live to get a feeling for them.

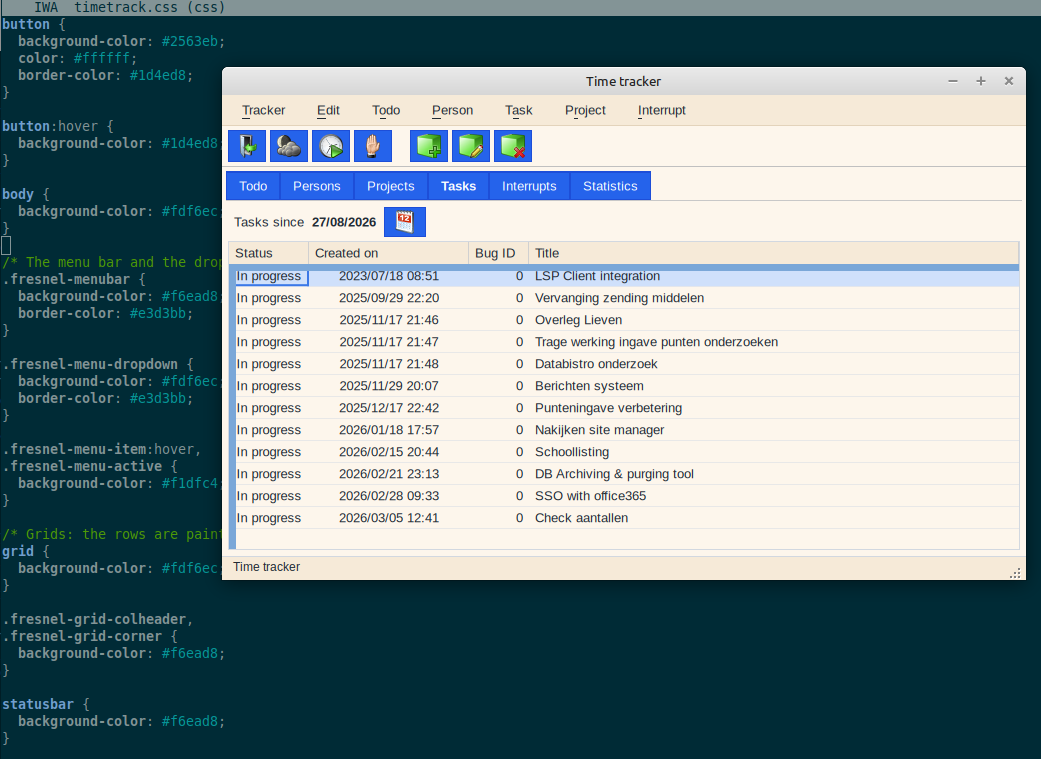

Where does the CSS come from?

Fresnel combines CSS from several places. From the least important to the most important:

A simple guideline:

• Leave the colors to the theme, or put them in the application stylesheet. Then dark mode keeps working.
• Put the layout of a form in the stylesheet of that form.
• Give elements a role with CSS classes (toolbar, row, caption), and write rules for the roles.
• Use the Style property only for quick experiments.

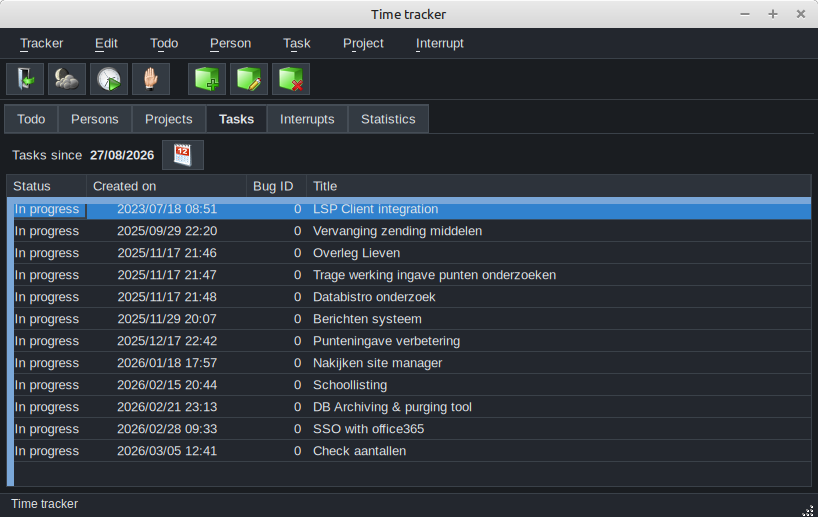

Light and dark mode

The built-in theme has a light and a dark variant. One line of code chooses:

Application.ColorScheme:=fcsDark;   // or fcsLight, or fcsAuto: follow the operating system

All open forms are redrawn immediately. Your own CSS can react to it, as a web page does:

.toolbar { border-bottom: 1px solid #c0c0c0; }
@media (prefers-color-scheme: dark) {
  .toolbar { border-bottom-color: #3a3f45; }
}

Why does it look like that? The CSS inspector

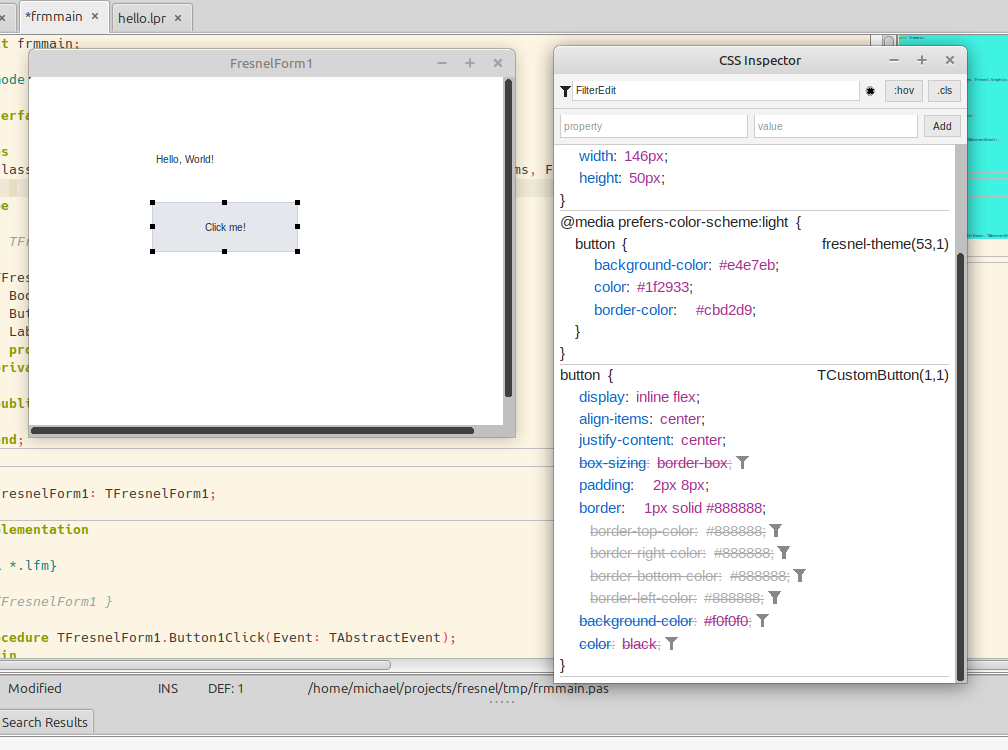

When you start with CSS, you will ask: which rule set this color? Why is this box so wide? Web developers use the developer tools of their browser for this. Fresnel has the same tools:

• In Lazarus, View - Fresnel CSS Inspector shows all CSS rules for the selected element, in the order of the cascade. Rules that are overruled are struck through. You can change values and see the result immediately.
• The inspector is a normal Fresnel control, TCSSStyleInspector, so you can put it in your own program. TLayoutInspector shows the content, padding, border and margin of an element.

Which CSS is supported?

A large part of CSS works: type, class, ID and attribute selectors; the combinators (space, >, +, ~); pseudo-classes such as :hover, :focus, :not(), :is(), :where() and :nth-child(); !important; units such as px, %, em, rem, pt, vw, vh and fr; custom properties (--name and var()); @media queries; flow, flexbox and grid layout; transitions and animations.

Not supported yet: :has(), ::before and ::after, calc() and attr(). The docs folder of the Fresnel sources has the complete, up-to-date list.
